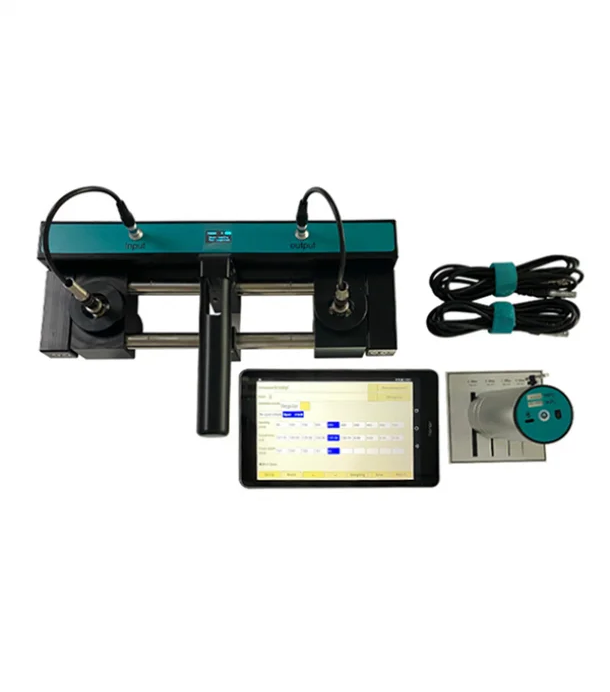

IWINTESTING F800 ເຄື່ອງວັດແທກຮອຍແຕກແບບໄຮ້ສາຍໃນຕົວ (5–500 mm)

Main Control Unit: 8-inch tablet PC, Windows operating system, 32 GB storage

Wireless Crack Width Gauge Unit

Test Range and Accuracy: 0–10 mm; 0.01 mm

Magnification: 60× digital magnification

Operating Mode: Touch screen + shortcut keys

Connection Type: Wi-Fi connection

Measurement Mode: Automatic / manual interpretation

Power Supply Mode: Built-in lithium battery

Working Hours: More than 10 hours

Wireless Crack Depth Gauge Unit

Testing Range: 5–500 mm

Measurement Accuracy: 5 mm or 2%–10% of actual depth

Operating Mode: Touch screen + automatically triggered probe

Placement: Bluetooth connection

Measurement Mode: Fast / standard measurement

Power Supply Mode: Built-in lithium battery

Working Hours: More than 10 hours

Working Environment: Temperature: −10 °C to +40 °C;Humidity: <90% RH

Features

Integrated design. Small size.

Original wireless camera probe, quick shot button easy to operate;The main machine adopts Windows tablet, Chinese full touch operation;

Intelligent interpretation of oblique fractures, without vertical;The image can be zoomed in and out, and the scale displayed on the interface can be interpreted manually.

No marking of sounding support, saving time and effort;Tablet and TF card storage, super-large capacity without limit, copy data convenient, fast;

The data analysis and report form is provided in the host computer, which can be owned without transferring to the upper computer
