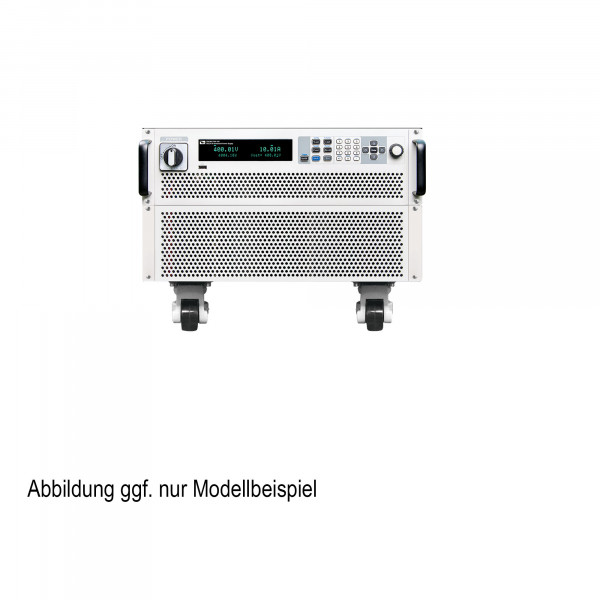

ITECH IT6030D-80-900 Programmable ດຽວຊ່ອງທາງການສະຫນອງພະລັງງານ DC (80V, 900A, 30kW)

Power: 30000 W

Voltage: 80 V

Current: 900 A

Measurement: 6 U

Master-slave parallel, the power can be paralleled up to 1.152 MW

Current is up to 2040 A by paralleling

The adoption of high frequency switching structure supports the automatic switching between CV and CC

Provides various protections: O VP. OCP. OPP. OTP. protection of power failure and U VP

Supports data recording function. can continuously record the Max. Min. Average values of output voltage and current. and it can automatically execute data by sequence

Power efficiency up to 95%

High power density of 18 kW in 3 U

Supports external data recording function, internal buffing, and the PC will periodically read data from the power supply

Built-in communication interfaces of USB/CAN/LAN/Digital IO, and optional interfaces of GPIB, Analog and RS232

Supports SCPI protocol, built-in Web server
