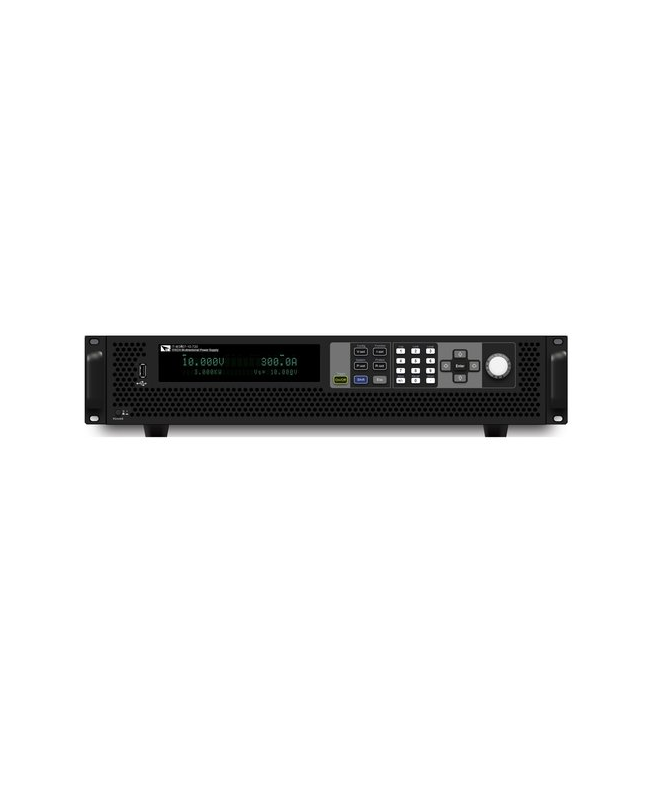

ITECH IT-M3912D-1500-24 ອຸປະກອນຈົດພະລັງງານ DC ກຳລັງສູງ (1500V/24A/12kW)
Size: 2 U
Rated value:
Voltage: 0～1500V
Current: 0A～24A
Power: 0W～12000W
Resistance in series （CV priority）: 0～1Ω
Setup Resolution
Voltage: 0.01V
Current: .001A
Power: 1W
Resistance in series （CV priority）: 0.01Ω
Read Back Resolution
Voltage: 0.01V
Current: 0.001A
Power: 1W
Setup Accuracy:
Voltage: ≤0.03% + 0.03%FS
Current: ≤0.1% + 0.1%FS
Power: ≤0.5% + 0.5%FS
Resistance in series （CV priority）: ≤1%FS
Read Back Accuracy
Voltage: ≤0.03% + 0.03%FS
Current: ≤0.1% + 0.1%FS
Power: ≤0.5% + 0.5%FS
Voltage ripple
Vp-p: ≤1500mVpp
Vrms: ≤150mV
Setup Temperature Coefficient
Voltage: ≤30ppm/℃
Current: ≤50ppm/℃
Read Back Temperature Coefficient
Voltage: ≤30ppm/℃
Current: ≤50ppm/℃
Rise Time( no load ): Voltage: ≤30ms
Rise Time( full load): Voltage: ≤60ms
Fall Time( no load): Voltage: ≤1s
Fall Time( full load): Voltage: ≤100ms
Line Regulation
Voltage: ≤0.01% + 0.01%FS
Current: ≤0.03% + 0.03%FS
Load Regulation
Voltage: ≤0.01% + 0.01%FS
Current: ≤0.05% + 0.05%FS
Output protection
OCP: 25A
OVP: 1515V
Overpower protection: 12240W
Working Temperature: 0～40℃
Storage Temperature: -10℃～70℃
IP: IP20
Isolation DC to GND: 1800Vdc
Isolation AC to GND: 3500Vdc
Cooling: Air
Dimension ( mm): 660mm*437mm*87mm
Weight( net): 30kg
