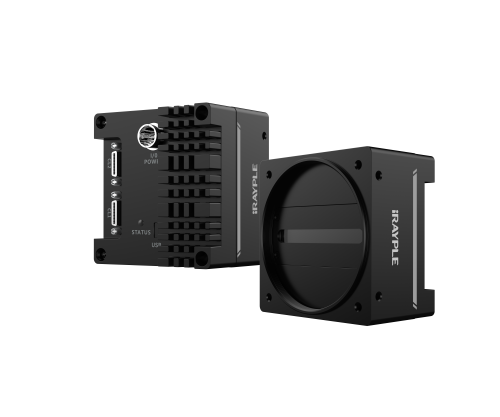

iRAYPLE L5087MK471E Line Scan Camera (8K; 8192×4; Mono)
ຜູ້ຜະລິດ: iRAYPLE Model: L5087MK471E - ຕິດຕໍ່ພົວພັນ
Basic
Sensor: 8K
Image Sensor: CMOS
Shutter: Global
Resolution: 8192×4
Line Rate: 100K
Bit Depth: 12
Mono/Color: Mono
Pixel Size: 7 μm × 7 μm
Pixel: 8192×4
S/N Ratio: 40dB
Dynamic Range: 63.3dB
Image Format: Mono8/10
Binning: Support
ROI: Support
X Flip: Support
Gain: 1~32
Gamma: From 0 to 4，support LUT
Exposure Time: 4μS~100mS
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
FPN: Support
TDI Stages: singleLine;fourLine;two_tdi
Performance
User Setting: Support two sets of user-defined configurations
Pixel Clock: 51/67/75/85MHz
Port
Port: CameraLink
GPIO Interface: 4 differential input, output, and 1 GPIO input, output
Lens Mount: M72
Power
Power Supply: DC 12~24V power supply via 12-pin Hirose connector
Power Consumption: 8.5W
Structure
Product Dimensions: 80mm×64mm×47.1mm (Not including rear case connector)
Net Weight: 520 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
