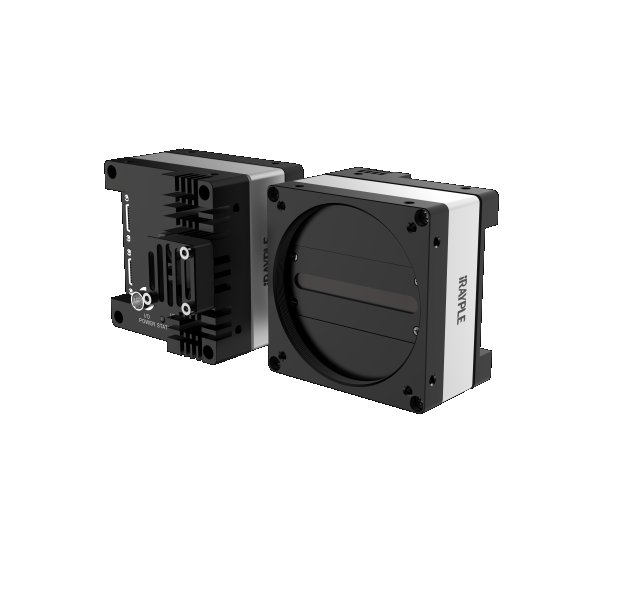

iRAYPLE L5087MK470E Line Scan Camera (8 K; 8192 × 4; Mono)
ຜູ້ຜະລິດ: iRAYPLE Model: L5087MK470E - ຕິດຕໍ່ພົວພັນ
Basic
Sensor: 8 K
Image Sensor: CMOS
Shutter: Global
Resolution: 8192 × 4
Line Rate: 100 kHz
Bit Depth: 10
Mono/Color: Mono
Pixel Size: 5 μm × 5 μm
Pixel: 8192×4
S/N Ratio: 40 db
Dynamic Range: 62 db
Image Format: Mono8/10
ROI: Support
X Flip: Support
Gain: 1~32
Gamma: From 0 to 4，support LUT
Exposure Time: 3 μs~100 ms
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
FPN: Support
TDI Stages: single_line，2TDI，4TDI
Performance
User Setting: Support two sets of user-defined configurations
Pixel Clock: 34 51 68 85MHz
Port
Port: CameraLink
Lens Mount: M72
Power
Power Supply: DC24V power supply
Power Consumption: 11.5 W
Structure
Product Dimensions: 80 mm×80 mm×57.8 mm(Not including rear case connector)
Net Weight: 520 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
