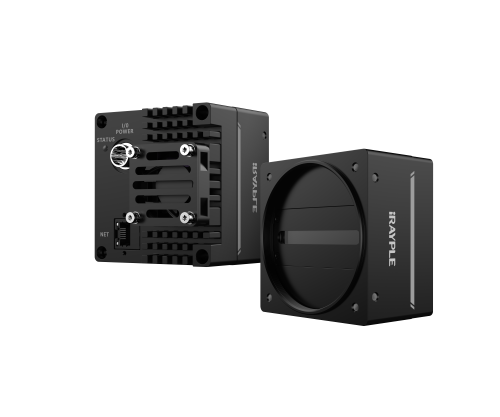

iRAYPLE L5087CT370E Line Scan Camera (8K; 8192 × 3; Color)
Basic
Sensor: 8K
Image Sensor: CMOS
Shutter: Global
Resolution: 8192 × 3
Line Rate: 48 kHz
Bit Depth: 12
Mono/Color: Color
Pixel Size: 7 μm × 7 μm
Pixel: 8192 × 3
S/N Ratio: 40 dB
Dynamic Range: 63.3 dB
Image Format: RGB8
Binning: Support
ROI: Support
X Flip: Support
Gain: 1~32
Gamma: From 0 to 4，support LUT
Exposure Time: 4μS~100mS
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
FPN: Support
Performance
User Setting: Support two sets of user-defined configurations
Port
Port: 10Gige
GPIO Interface: 4 differential input, output, and 1 GPIO input, output,
Lens Mount: M72
Power
Power Supply: DC 12~24V power supply via 12-pin Hirose connector
Power Consumption: 14W
Structure
Product Dimensions: 80 mm × 64 mm × 48.2 mm (Not including rear case connector)
Net Weight: 520 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
