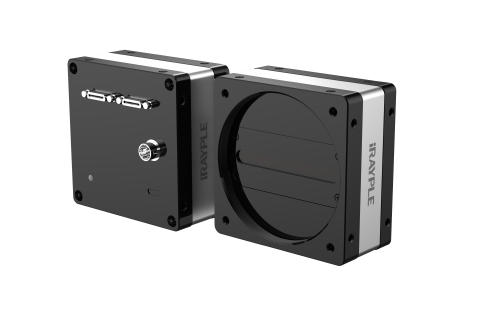

iRAYPLE L5082MK170E Line Scan Camera (8 K; 8192 × 1; Mono)
Basic
Sensor: 8 K
Image Sensor: CMOS
Shutter: Global
Resolution: 8192 × 1
Line Rate: 80 kHz
Bit Depth: 12
Mono/Color: Mono
Pixel Size: 7 μm × 7 μm
Pixel: 8192 × 1
S/N Ratio: 46 db
WDR: 65.9 db
Image Format: Mono8/10
Binning: Support
ROI: Support
X Flip: Support
Gain: 1~32
Gamma: From 0 to 4，support LUT
Exposure Time: 2 μs~100 ms
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
FPN: Support
Performance
User Setting: Support two sets of user-defined configurations
Pixel Clock: 34/51/68/85MHz
Port
Port: CameraLink
Lens Mount: M72
Power
Power Supply: DC12~24V power supply
Power Consumption: 5 W
Structure
Product Dimensions: 80 mm × 80 mm × 39.5 mm (Not including rear case connector)
Net Weight: 360 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
