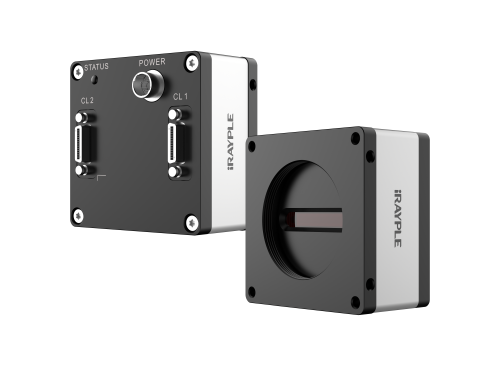

iRAYPLE L5047MK141E Line Scan Camera (4K; 4096 × 2; Mono)
Basic
Sensor: 4K
Image Sensor: CMOS
Shutter: Global
Resolution: 4096 × 2
Line Rate: 180 kHz
Bit Depth: 12
Mono/Color: Mono
Pixel Size: 7 μm × 7 μm
Pixel: 4096×1
S/N Ratio: 39.4 DB
Dynamic Range: 66 dB
Image Format: Mono8/10
Binning: Support
ROI: Support
X Flip: Support
Gain: 1–32
Gamma: From 0 to 4，support LUT
Exposure Time: 4 us–100 ms
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
FPN: Support
TDI Stages: single_line，2TDI
Performance
User Setting: Support two sets of user-defined configurations
Pixel Clock: 34/51/64/85 MHz
Port
Port: CameraLink
Lens Mount: M42
Power
Power Supply: 12V～24 VDC power supply
Power Consumption: 4.5 W
Structure
Product Dimensions: 62 mm × 62 mm × 33.7 mm (Not including rear case connector)
Net Weight: 200 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
