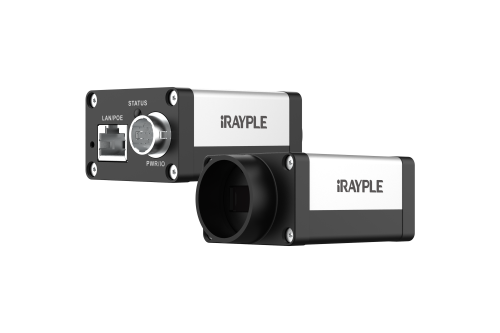

iRAYPLE L5027CG300E Line Scan Camera (2 K; 2048 × 3; Color)
Basic
Sensor: 2 K
Image Sensor: Gpixel
Shutter: Global
Resolution: 2048 × 3
Line Rate: 44.7 kHz
Bit Depth: 12
Mono/Color: Color
Pixel Size: 7 μm × 7 μm
Pixel: 2048 × 3
S/N Ratio: 39.6 db
Dynamic Range: 65.5 db
Image Format: Mono8/BayerRG8/10/12/10P/12P/RGB8P/YUV422
Binning: Support
ROI: Support
X Flip: Support
Gain: 1~32
White Balance: Support
Gamma: From 0 to 4，support LUT
Exposure Time: 8μS~100mS
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
FPN: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 64MB Image Cache，64M Data Cache
Port
Port: GigE
GPIO Interface: 12-pin Hirose interface for external power supply and external triggering; 2 differential/single-ended inputs, 1 differential configurable input or output, 1 high-speed optocoupler single-ended input, 1 GPIO configurable input or output
Lens Mount: C-Mount
Power
Power Supply: DC12-24V power supply
Power Consumption: 4.6W
Structure
Product Dimensions: 29 mm × 44 mm × 57.5 mm (Not including rear case connector)
Net Weight: 100 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
