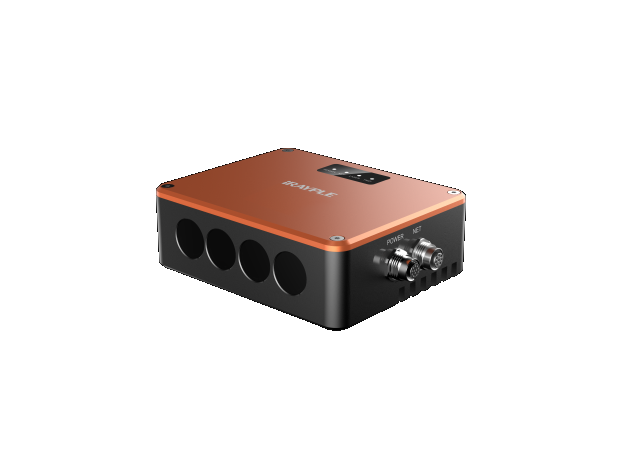

iRAYPLE DS5131MG30CE ກ້ອງ 3D Stereo (600 mm-3500 mm)
Basic
Resolution: Mono：1280 × 960；Color：1288 × 1032
Max. Frame rate: 30 fps
Sensor Type: Mono：1/3"，CMOS；Color：1/2.7"，CMOS
Shutter Mode: Global
Pixel Size: Mono：3.75 μm × 3.75 μm；Color：4.0 μm × 4.0 μm
Mono/Color: Mono&Color
Lens Mount: M12
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
Software: SCV
Certifications: CE，FCC
Function: Volume measurement，Positioning guide
Performance
Near FoV: 590 mm×540 mm
Far FoV: 3880 mm×3190 mm
Operating Distance: 600 mm-3500 mm
Z-axis Accuracy: 1 m@±2 mm
Data Type: Color map, depth map, points cloud, dimension;
Light Source type: Illuminator module
Laser Grade: class1
Port
Connector: 2 industrial-grade connector supports Ethernet and GPIO
Network Port: Code-A, GigE Ethernet
GPIO Interface: 2-opto isolated inputs
Communication Mode: Ethernet、RS232
Communication protocol: SDK，Serial，TCPServer，TCPClient
LED Indicator: Power ethernet, network, trigger, laser
Power
Power Supply: Support DC12V-24V wide-range power supply, suitable for DC12V/24V voltage environment;
Power Consumption: ＜10.0 W
Structure
Product Dimensions: 150 mm×120 mm×50.5 mm(Not including connector height)
Packaging Dimensions: 369 mm × 257 mm × 148 mm
Net Weight: ＜1500 g
Gross Weight: ＜3200 g
Protection: IP65
Casing Material: Aluminium alloy
Environment
Operating Temperature: -20℃-+50℃
Operating Humidity: 20%-95%, condensation
Storage Temperature: -30℃-+80℃
