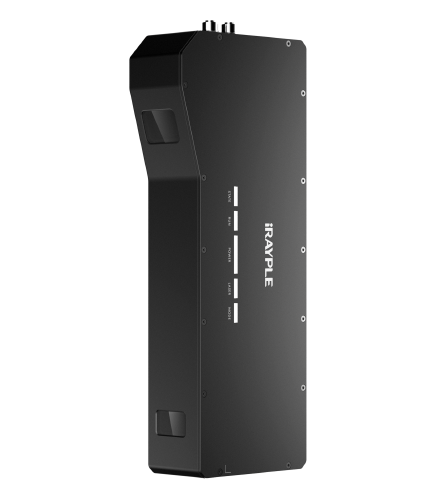

iRAYPLE DH-MV-D5201MG100E ກ້ອງ 3D ອຸດສາຫະກໍາ (1000mm)
Basic
Max. Frame rate: 250 fps
Software: Volume3D
Certifications: CE，FCC
Function: Point cloud image, W*D*L data, Volume measurement, Integral volume
Performance
Near FoV: 1000mm
Far FoV: 2200mm
Clearance Distance: 830mm
Operating Distance: 1000mm～1800mm（Affect measurement range）
Measuring Range: 1000mm
Measuring Accuracy: 5mm*5mm*5mm
Max. Operating Speed: 2m/s
Laser Grade: 3B
Port
Connector: 2 industrial grade M12 connectors, for Ethernet and GPIO
Network Port: Code-A, Gigabit Ethernet
GPIO Interface: 12-pin I/O interface, contain POWER/IO/Encoder interface
Port: Ethernet,RS232
Communication protocol: SDK，Serial，TCPServer，TCPClient，Profinet
LED Indicator: Power,Network,Trigger,Laser,Mode
Power
Power Supply: Support DC12V～24V wide-range power supply,adapt for industrial DC12V/24V different voltage environment
Power Consumption: <10.0W
Structure
Product Dimensions: 370mm×65.6mm×150mm(Not include Interface height)
Net Weight: <4 kg
Protection: IP65
Casing Material: Aluminum alloy
Environment
Operating Temperature: -10℃～+50℃
Operating Humidity: 20%～85%，no condensing
Storage Temperature: -30℃～+70℃
