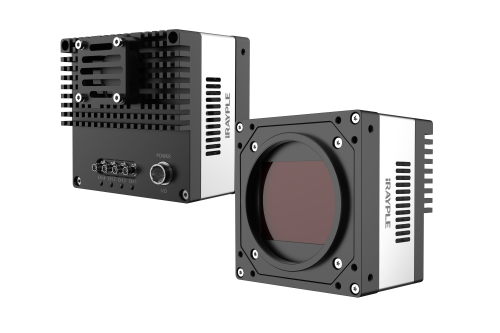

iRAYPLE AX7Q27MP470E ສະແກນພື້ນທີ່ຂະຫນາດໃຫຍ່ (GMAX32152; 16544 × 9200; Mono)

Basic

Sensor: GMAX32152

Image Sensor: 53.0 mm × 29.4 mm CMOS

Shutter: Global

Resolution: 16544 × 9200

Frame Rate: 16 fps

Bit Depth: 12

Mono/Color: Mono

Pixel Size: 3.2 μm × 3.2 μm


Pixel: 152 MP

S/N Ratio: > 39.6 dB

Dynamic Range: 67.3 dB

Image Format: Mono8/10/12

Binning: Support

ROI: Support

X Flip: Support

Y Flip: Support

Gain: Analog gain: 1.4x ~ 5.2x, Digital gain: 1x ~ 100x

Exposure Time: 19 μs～15 s

Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode

SPC: Support

Performance

User Setting: Support two sets of user-defined configurations

Port

Port: CXP-12

GPIO Interface: 3x Opto-isolated input, 3x Opto-isolated output

Lens Mount: M72 × 0.75

Power

Power Supply: DC 24V power supply via 12 Hirose interface，support PoCXP

Power Consumption: 20 W

Structure

Product Dimensions: 100 mm × 100 mm × 89.4 mm (not including rear case connector)

Net Weight: 900 g

Environment

Storage Temperature: -30℃～+80℃

Operating Temperature: -30℃～+50℃
