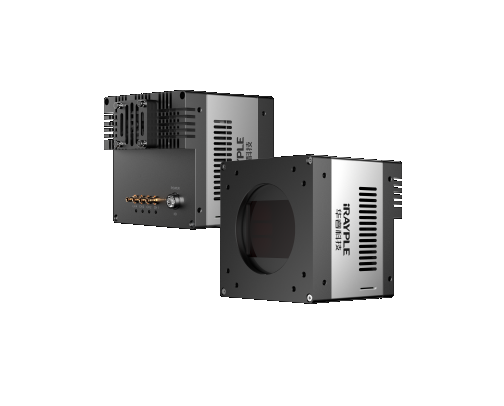

iRAYPLE AX7Q10MX770E ສະແກນພື້ນທີ່ຂະຫນາດໃຫຍ່ (IMX411; 14192 × 10640; Mono)
Basic
Sensor: IMX411
Image Sensor: 53.4 mm x 40.0 mm CMOS
Shutter: Rolling
Resolution: 14192 × 10640
Frame Rate: 6.2 fps
Bit Depth: 12 bit
Mono/Color: Mono
Pixel Size: 3.76 μm × 3.76 μm
Pixel: 151 MP
S/N Ratio: 45 dB
WDR: 78 dB
Image Format: Mono8/10/12
ROI: Support
X Flip: Support
Y Flip: Support
Gain: Analog gain: 1x ~ 63x, Digital gain: 1x ~ 100x
Exposure Time: 30 μs ~ 5 s
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Port
Port: CXP-6
GPIO Interface: 3x Opto-isolated input, 3x Opto-isolated output;1x RS232
Lens Mount: M72 x 0.75
Power
Power Supply: DC 24V power supply via 12 Hirose interface，support PoCXP
Power Consumption: 24 V ≈ 51.6 W
Structure
Product Dimensions: 110 mm x 110 mm x 90.1 mm (Non including rear case connector)
Net Weight: 1k g
Environment
Storage Temperature: -30℃ ~ 80℃
Operating Temperature: -30℃ ~ 50℃
