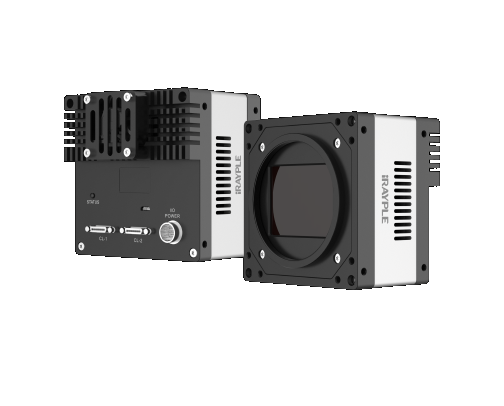

iRAYPLE AX7Q00MK470E ສະແກນພື້ນທີ່ຂະຫນາດໃຫຍ່ (IMX411; 14160 × 10640; Mono)
Basic
Sensor: IMX411
Image Sensor: 53.4 mm x 40.0 mm CMOS
Shutter: Rolling
Resolution: 14160 × 10640
Frame Rate: 5.1 fps
Bit Depth: 12 bit
Mono/Color: Mono
Pixel Size: 3.76 μm × 3.76 μm
Pixel: 151 MP
S/N Ratio: 45 dB
WDR: 90 dB
Image Format: Mono8/10/12
ROI: Support
X Flip: Support
Gain: 1 ~ 32
Gamma: 0 ~ 4，Support LUT
Exposure Time: 3 μs ~ 15 s
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Port
Port: CameraLink
GPIO Interface: 3x Opto-isolated input, 3x Opto-isolated output;1x RS232
Lens Mount: M72 x 0.75
Power
Power Supply: DC 24V power supply via 12 Hirose interface
Power Consumption: 24 V ≈ 18 W
Structure
Product Dimensions: 100 mm x 100 mm x 65.7 mm (Non including rear case connector)
Net Weight: 890 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
