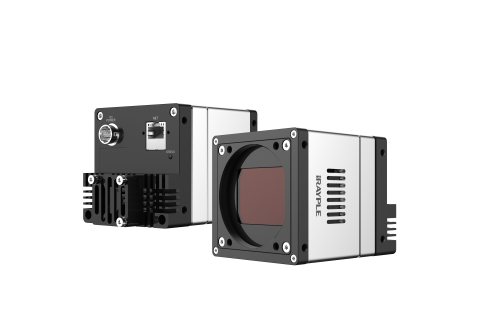

iRAYPLE AX5K37MT250E ສະແກນພື້ນທີ່ຂະຫນາດໃຫຍ່ (GMAX32103; 11264 × 9200; Mono)
Basic
Sensor: GMAX32103
Image Sensor: 36.1 mm × 29.4 mm CMOS
Shutter: Global
Resolution: 11264 × 9200
Frame Rate: 11.25 fps
Bit Depth: 12
Mono/Color: Mono
Pixel Size: 3.2 μm × 3.2 μm
Pixel: 103 MP
S/N Ratio: > 40 dB
WDR: 66.4 dB
Image Format: Mono8/10/10Packed/12/12Packed
Binning: Support
ROI: Support
X Flip: Support
Y Flip: Support
Gain: 1～32
Gamma: From 0 to 4, support LUT
Exposure Time: 20 μs～15 s
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 1GB
Port
Port: 10GigE
GPIO Interface: 3 × Opto-isolated input, 3 × Opto-isolated output, 1 × RS232
Lens Mount: M58 × 0.75
Power
Power Supply: 24 V
Power Consumption: 20 W
Structure
Product Dimensions: 72 mm × 72 mm × 79 mm (not including rear case connector)
Net Weight: 600 g
Environment
Storage Temperature: - 30℃～+80℃
Operating Temperature: 0℃～+50℃
