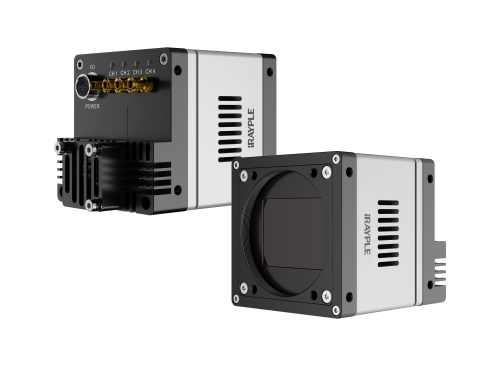

iRAYPLE AX5E07CX250E ສະແກນພື້ນທີ່ຂະຫນາດໃຫຍ່ (Customize; 9344 × 5000; Color)
Basic
Sensor: Customize
Image Sensor: 29.9 mm × 16.0 mm CMOS
Shutter: Global
Resolution: 9344 × 5000
Frame Rate: 44 fps
Bit Depth: 12 bit
Mono/Color: Color
Pixel Size: 3.2 μm × 3.2 μm
Pixel: 50 MP
S/N Ratio: 40 dB
WDR: 66 dB
Image Format: BayerRG8/10/12
ROI: Support
X Flip: Support
Y Flip: Support
Gain: Analog gain: 1x ~ 4.8x, Digital gain: 1x ~ 100x
Exposure Time: 27 μs ~ 5 s
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Port
Port: CXP-6
GPIO Interface: 3× Opto-isolated input, 3× Opto-isolated output;1× RS232
Lens Mount: M58 × 0.75
Power
Power Supply: DC 24V power supply via 12 Hirose interface，support PoCXP
Power Consumption: 24 V ≈ 21.6 W
Structure
Product Dimensions: 72 mm × 72 mm × 70 mm (Non including rear case connector)
Net Weight: 690 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
