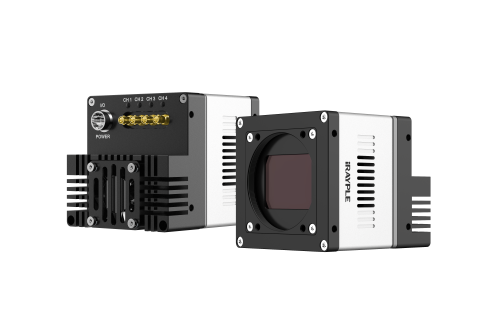

iRAYPLE AX5B17MP050E ສະແກນພື້ນທີ່ຂະຫນາດໃຫຍ່ (GSPRINT4521; 5120 × 4096; Mono)
Basic
Sensor: GSPRINT4521
Image Sensor: 23.0 mm × 18.4 mm CMOS
Shutter: Global
Resolution: 5120 × 4096
Frame Rate: 219 fps
Bit Depth: 12 bit
Mono/Color: Mono
Pixel Size: 4.5 μm × 4.5 μm
Pixel: 21 MP
S/N Ratio: 44 dB
WDR: 69 dB
Image Format: Mono8/10/12
ROI: Support
X Flip: No Support
Y Flip: Support
Gain: Analog gain: 1× ~ 8×, Digital gain: 1× ~ 100×
Exposure Time: 4 μs ~ 5 s
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Port
Port: CXP-12
GPIO Interface: 3× Opto-isolated input, 3× Opto-isolated output;1× RS232
Lens Mount: M58 × 0.75
Power
Power Supply: DC 24V power supply via 12 Hirose interface，support PoC×P
Power Consumption: 24 V ≈ 34.56 W
Structure
Product Dimensions: 80 mm × 80 mm × 75 mm (Non including rear case connector)
Net Weight: 775 g
Environment
Storage Temperature: -30℃ ~ 80℃
Operating Temperature: -30℃ ~ 50℃
