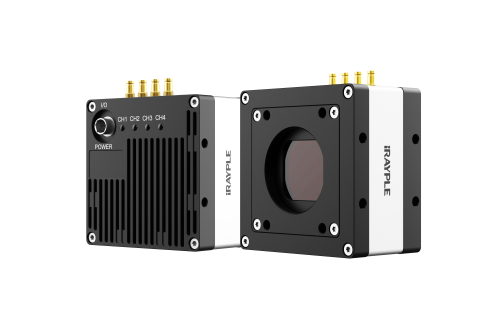

iRAYPLE AX5A22MX340E ສະແກນພື້ນທີ່ຂະຫນາດໃຫຍ່ (CMV12000; 4096 × 3072; Mono)
Basic
Sensor: CMV12000
Image Sensor: 22.5 mm × 16.9 mm CMOS
Shutter: Global
Resolution: 4096 × 3072
Frame Rate: 188 fps
Bit Depth: 10 bit
Mono/Color: Mono
Pixel Size: 5.5 μm × 5.5 μm
Pixel: 12MP
S/N Ratio: 41.3dB
WDR: 60dB
Image Format: Mono8/Mono10/Mono12
ROI: Support
X Flip: Support
Y Flip: Support
Gain: 1~100
Exposure Time: 50μS~5S
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 2GB data cache
Port
Port: CXP-6
GPIO Interface: 3x configurable input and output
Lens Mount: M42 x 1
Power
Power Supply: DC24V power supply via 6-pin Hirose interface
Power Consumption: 24V≈15W
Structure
Product Dimensions: 80mm*80mm*47mm(not including rear case connector)
Net Weight: 720 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
