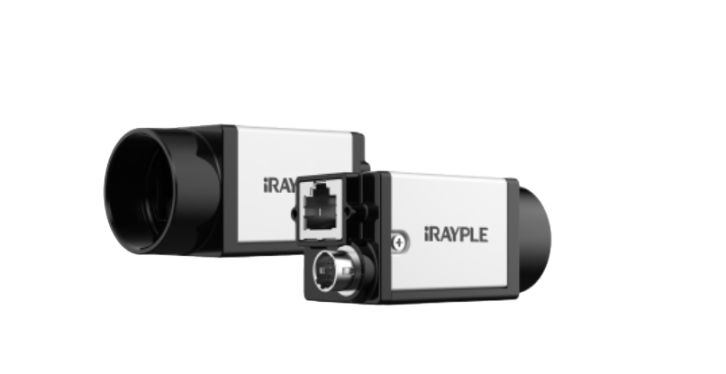

iRAYPLE AE7160MG010E ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (IMX273; 1440 × 1080; Mono)
Basic
Sensor: IMX273
Image Sensor: 1/2.9"CMOS
Shutter: Global
Resolution: 1440 × 1080
Frame Rate: 77 fps
Bit Depth: 12
Mono/Color: Mono
Pixel Size: 3.45 μm × 3.45 μm
Pixel: 1.6 MP
S/N Ratio: 38 dB
Dynamic Range: 60 dB
Image Format: Mono8/10/10Packed/Mono12/Mono12Packed；
Binning: Support
ROI: Support
X Flip: Support
Y Flip: Support
Gain: 1～32
Gamma: From 0 to 4, support LUT
Exposure Time: 16 μs～1 s
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 256 MB
Port
Port: GigE, PoE
GPIO Interface: 1× 6 pin Hirose: 1× Opto-isolated input, 1× Opto-isolated output, 1 configurable input and output
Lens Mount: C-mount
Power
Power Supply: PoE/ DC 9V~24V power supply via Hirose interface
Power Consumption: 12 V≈3.5 W
Structure
Product Dimensions: 29 mm × 29 mm × 42 mm (not including lens mount and rear case connector)
Net Weight: 98 g
Environment
Storage Temperature: –30℃～+80℃
Operating Temperature: 0℃～+50℃
