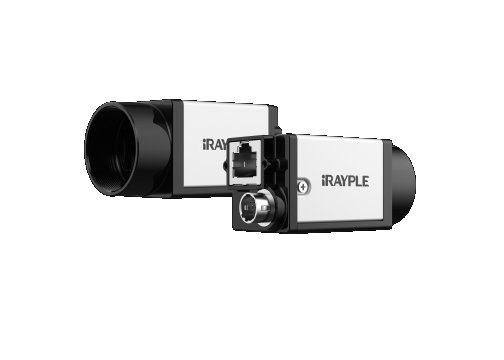

iRAYPLE AE3600CG000E ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (IMX178; 3072 × 2048; Color)
Basic
Sensor: IMX178
Image Sensor: 1/1.8"CMOS
Shutter: Rolling/GlobalResetRealease
Resolution: 3072 × 2048
Frame Rate: 19.2 fps
Bit Depth: 12
Mono/Color: Color
Pixel Size: 2.4 μm × 2.4 μm
Pixel: 6.0 MP
S/N Ratio: 40 dB
Dynamic Range: 73 dB
Image Format: BayerRG8/BayerRG10/BayerRG12/BayerRG10Packed/BayerRG12Packed
ROI: Support
X Flip: Support
Y Flip: Support
Gain: 1～32
White Balance: Support
Gamma: From 0 to 3.99998, support LUT
Exposure Time: 25.5 μs～2.5 s
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support three sets of user-defined configurations
Image Buffer: 128 MB
Port
Port: GigE, PoE
GPIO Interface: 1× 6 pin Hirose: 1× Opto-isolated input, 1× Opto-isolated output, 1 configurable input and output
Lens Mount: C-mount
Power
Power Supply: PoE/ DC 9V~24V power supply via Hirose interface
Power Consumption: 12 V≈2.5W
Structure
Product Dimensions: 29 mm × 29 mm × 42 mm (not including lens mount and rear case connector)
Net Weight: 98 g
Environment
Storage Temperature: –30℃～+80℃
Operating Temperature: 0℃～+50℃
