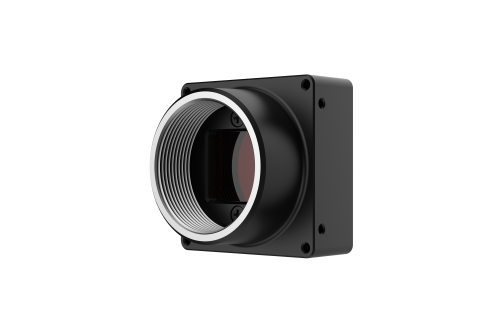

iRAYPLE AB7300MU102E ກ້ອງຖ່າຍຮູບລະດັບກະດານ (IMX252; 2048 × 1536; Mono)
Basic
Sensor: IMX252
Image Sensor: 1/1.8"CMOS
Shutter: Global
Resolution: 2048 × 1536
Frame Rate: 120fps
Bit Depth: 10
Mono/Color: Mono
Pixel Size: 3.45 μm × 3.45 μm
Pixel: 3.2MP
S/N Ratio: >38dB
Dynamic Range: >70dB
Image Format: Mono8/10/10Packed
Binning: Support
ROI: Support
X Flip: Support
Y Flip: Support
Gain: 1~32
Gamma: Range from 0 to 4, support LUT
Exposure Time: 16μS~1S
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 64MB
Port
Port: USB 3.0
GPIO Interface: 5-core white plug interface: 1 optocoupler isolated input, 1 optocoupler isolated output, and 1 configurable input/output without optocoupler isolation
Lens Mount: C
Power
Power Supply: 5.0V/900mA, powered through USB3.0 interface (compliant with USB3.0 interface specifications) or +5.0V/1A DC power supply auxiliary power supply (through auxiliary communication interface)
Power Consumption: ≈2.8W
Structure
Product Dimensions: 35mm × 35mm × 31mm (not including lens)
Net Weight: 50g
Environment
Storage Temperature: -30°C~+80°C
Operating Temperature: 0°C~+40°C
