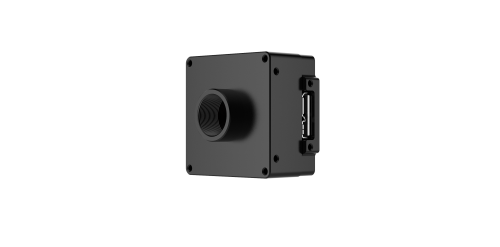

iRAYPLE AB3600CU010E ກ້ອງຖ່າຍຮູບລະດັບກະດານ (IMX178; 3072 × 2048; Color)
Basic
Sensor: IMX178
Image Sensor: 1/1.8"CMOS
Shutter: Rolling
Resolution: 3072 × 2048
Frame Rate: 60 fps
Bit Depth: 10
Mono/Color: Color
Pixel Size: 2.4 μm × 2.4 μm
Pixel: 6.2MP
S/N Ratio: >38dB
Dynamic Range: 66dB
Image Format: BayerRG8/10/10Packed，BayerGB8/10/10Packed
ROI: Support
Gain: 1~32
Gamma: From 0 to 4，support LUT
Exposure Time: 11μS~1S
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 64MB
Port
Port: USB3.0
GPIO Interface: Standard 5 pin trigger connecter: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Lens Mount: M12
Power
Power Supply: power supply via USB interface（conform to USB3.0 interface specification）
Power Consumption: ≈2.8W
Structure
Product Dimensions: 35mm*35mm*19mm
Net Weight: 46 g
Environment
Storage Temperature: -30°C～+80°C
Operating Temperature: -30°C～+50°C
