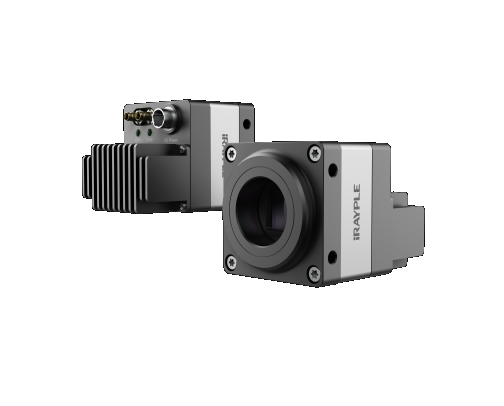

iRAYPLE A9B57MX703E ສະແກນພື້ນທີ່ຂະຫນາດໃຫຍ່ (GMAX0505; 5120 × 5120; Mono)
Basic
Sensor: GMAX0505
Image Sensor: 1.1"CMOS
Shutter: Global
Resolution: 5120 × 5120
Frame Rate: 42 fps
Bit Depth: 12 bit
Mono/Color: Mono
Pixel Size: 2.5 μm × 2.5 μm
Pixel: 25 MP
S/N Ratio: 36 dB
WDR: 63 dB
Image Format: Mono8/10/12
ROI: Support
X Flip: Support
Y Flip: Support
Gain: Analog gain: 1× ～ 2×, Digital gain: 1× ～ 100×
Exposure Time: 25 μs ~ 5 s
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Port
Port: CXP-6
GPIO Interface: 1× Opto-isolated input, 1× Opto-isolated output, 1× configurable input and output
Lens Mount: C-mount
Power
Power Supply: DC 24V power supply via 6 Hirose interface，support PoCXP
Power Consumption: 24 V ≈ 8 W
Structure
Product Dimensions: 50 mm × 50 mm × 45 mm (Non including rear case connector)
Net Weight: 240 g
Environment
Storage Temperature: -30℃ ~ 80℃
Operating Temperature: -30℃ ~ 40℃
