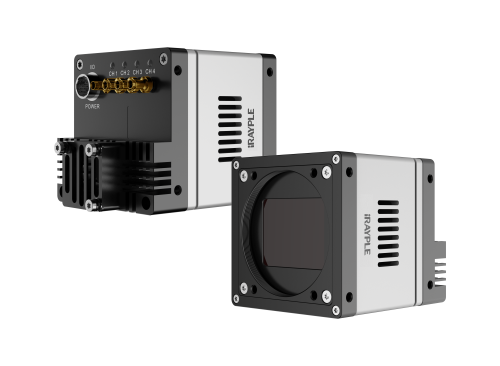

iRAYPLE A9B57MX250E ສະແກນພື້ນທີ່ຂະຫນາດໃຫຍ່ (GMAX0505; 5120 × 5120; Mono)
Basic
Sensor: GMAX0505
Image Sensor: 1.1" CMOS
Shutter: Global
Resolution: 5120 × 5120
Frame Rate: 90 fps
Bit Depth: 10
Mono/Color: Mono
Pixel Size: 2.5 μm × 2.5 μm
Pixel: 25MP
S/N Ratio: 36dB
WDR: 63dB
Image Format: Mono8/Mono10/Mono12
ROI: Support
X Flip: Support
Y Flip: Support
Gain: 1~100
Exposure Time: 25μS~5S
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 2GB data cache
Port
Port: CXP-6
GPIO Interface: 3x Opto-isolated input, 3x Opto-isolated output；1x RS232
Lens Mount: M58 x 0.75
Power
Power Supply: DC 24V power supply via 12-pin Hirose interface;
Power Consumption: 24V≈13W
Structure
Product Dimensions: 72 mm × 72 mm × 70 mm (not including rear case connector)
Net Weight: 720 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
