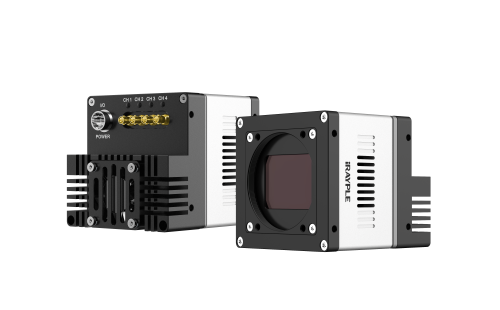

iRAYPLE A9B57CP050E ສະແກນພື້ນທີ່ຂະຫນາດໃຫຍ່ (GMAX0505; 5120 × 5120; Color)
Basic
Sensor: GMAX0505
Image Sensor: 1.1"CMOS
Shutter: Global
Resolution: 5120 × 5120
Frame Rate: 150 fps
Bit Depth: 10
Mono/Color: Color
Pixel Size: 2.5 μm × 2.5 μm
Pixel: 25MP
S/N Ratio: 36dB
WDR: 63dB
Image Format: BayerGR8 /BayerGR10 /BayerGR12 /BayerRG8 /BayerRG10 /BayerRG12/BayerGB8/BayerGB10/BayerGB12/BayerBG8/BayerBG10/BayerBG12
ROI: Support
X Flip: Support
Y Flip: Support
Gain: 1~100
White Balance: Support
Exposure Time: 15μS~5S
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 2GB data cache
Port
Port: CXP-12
GPIO Interface: 3x Opto-isolated input, 3x Opto-isolated output；1x RS232
Lens Mount: M58 x 0.75
Power
Power Supply: DC 24V power supply via 12-pin Hirose interface;
Power Consumption: 24V≈19.4W
Structure
Product Dimensions: 80mm*80mm*72mm(not including rear case connector)
Net Weight: 890 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
