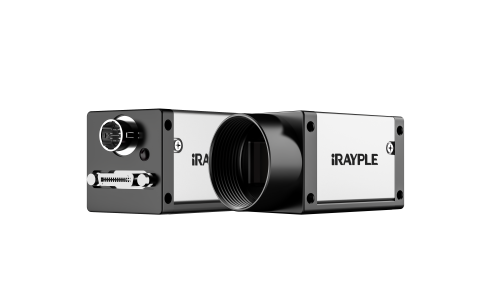

iRAYPLE A7A21CK401E ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (XGS12000; 4096 × 3072; Color)
Basic
Sensor: XGS12000
Image Sensor: 1"CMOS
Shutter: Global
Resolution: 4096 × 3072
Frame Rate: 18 fps
Bit Depth: 10
Mono/Color: Color
Pixel Size: 3.2 μm × 3.2 μm
Pixel: 12 MP
S/N Ratio: ＞38 dB
WDR: ＞70 dB
Image Format: BayerRG8/BayerRG10/BayerRG12
ROI: Support
X Flip: Support
Y Flip: Support
Gain: 1~32
Exposure Time: 17 μs～1 s
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
Performance
User Setting: Support two sets of user-defined configurations
Pixel Clock: 80 M
Port
Port: CameraLink
GPIO Interface: 1× 6 pin Hirose: 1× Opto-isolated input, 1× Opto-isolated output, 1 configurable input and output
Lens Mount: C-mount
Power
Power Supply: PoCL/DC 9V~24V power supply via Hirose interface
Power Consumption: ≈2.4 W
Structure
Product Dimensions: 29mm×29mm×43.8mm(not including lens mount and rear case connector)
Net Weight: 80 g
Environment
Storage Temperature: -30° C~ + 80° C
Operating Temperature: -30° C~+50° C
