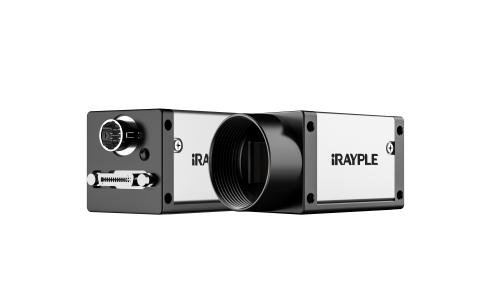

iRAYPLE A7900CK401E ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (IMX267; 4096 × 2160; Color)
Basic
Sensor: IMX267
Image Sensor: 1"CMOS
Shutter: Global
Resolution: 4096 × 2160
Frame Rate: 27 fps
Bit Depth: 8
Mono/Color: Color
Pixel Size: 3.45 μm × 3.45 μm
Pixel: 9 MP
S/N Ratio: ＞38 dB
WDR: ＞70 dB
Image Format: BayerGB8
ROI: Support
X Flip: Support
Y Flip: Support
Gain: 1~32
White Balance: Support
Exposure Time: 29 μs~1 s
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
Performance
User Setting: Support two sets of user-defined configurations
Pixel Clock: 34M/51M/68M/85M
Port
Port: CameraLink
GPIO Interface: 1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Lens Mount: C-mount
Power
Power Supply: PoCL/DC 9V~24V power supply via Hirose interface
Power Consumption: ≈2.4 W
Structure
Product Dimensions: 29 mm × 29 mm × 43.8 mm(not including lens mount and rear case connector)
Net Weight: 80 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
