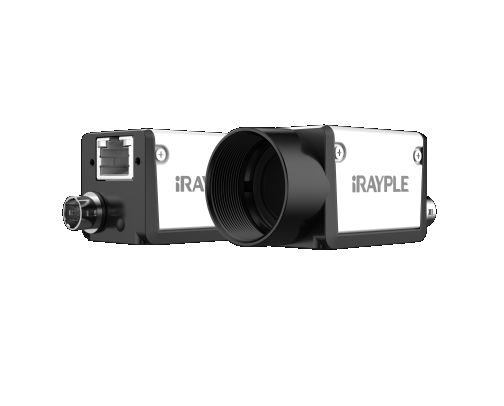

iRAYPLE A7500PG400E ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (IMX250MZR; 2448 × 2048; Polar)
Basic
Sensor: IMX250MZR
Image Sensor: 2/3"CMOS
Shutter: Global
Resolution: 2448 × 2048
Frame Rate: 24 fps
Bit Depth: 12
Mono/Color: Polar
Pixel Size: 3.45 μm × 3.45 μm
Pixel: 5.0MP
S/N Ratio: >38dB
WDR: >70dB
Image Format: Mono8，BayerRG8/10/10Packed，BayerGB8/10/10Packed,YUV422Packed
ROI: Support
X Flip: Support
Y Flip: Support
Gain: 1~32
Gamma: From 0 to 4，support LUT
Exposure Time: 32.73μS~1S
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 256MB
Port
Port: GigE, PoE
GPIO Interface: 1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output,
Lens Mount: C-mount
Power
Power Supply: PoE / DC 9V~24V power supply via Hirose interface
Power Consumption: 12V≈3.2W
Structure
Product Dimensions: 29mm*44mm*58mm (not including lens mount and rear case connector)
Net Weight: 88 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
