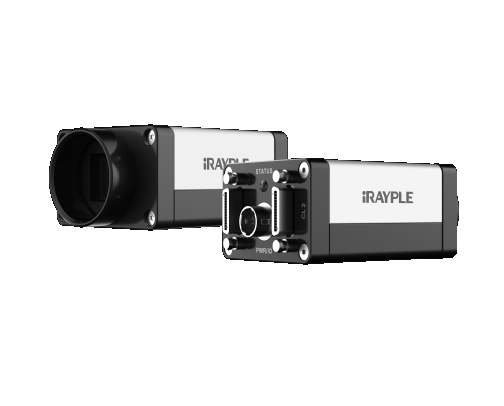

iRAYPLE A7500CK200E ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (IMX250; 2448 × 2048; Color)
Basic
Sensor: IMX250
Image Sensor: 2/3" CMOS
Shutter: Global
Resolution: 2448 × 2048
Frame Rate: 150 fps
Bit Depth: 10
Mono/Color: Color
Pixel Size: 3.45 μm × 3.45 μm
Pixel: 5MP
S/N Ratio: >38dB
WDR: >70dB
Image Format: BayerRG8/BayerGB8
ROI: Support
X Flip: Support
Y Flip: Support
Gain: 1~32
White Balance: automatic white balance
Exposure Time: 16μS~1S
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
Performance
User Setting: Support two sets of user-defined configurations
Pixel Clock: 34M/51M/68M/85M
Port
Port: CameraLink
GPIO Interface: 1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Lens Mount: C-mount
Power
Power Supply: PoCL/DC 9V~24V power supply via Hirose interface
Power Consumption: ≈3W
Structure
Product Dimensions: 29mm*44mm*58mm(not including lens mount and rear case connector)
Net Weight: 100 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
