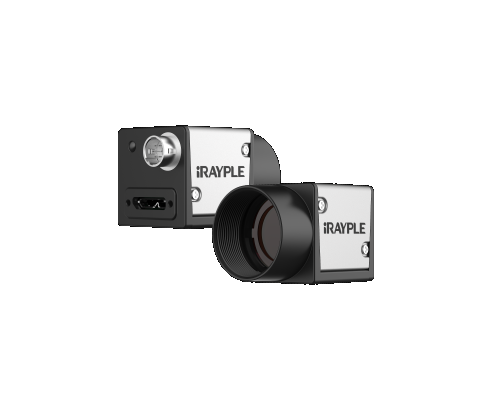

iRAYPLE A7230CU000E ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (IMX392; 1920 × 1200; Color)
Basic
Sensor: IMX392
Image Sensor: 1/2.3"CMOS
Shutter: Global
Resolution: 1920 × 1200
Frame Rate: 167 fps
Bit Depth: 10
Mono/Color: Color
Pixel Size: 3.45 μm × 3.45 μm
Pixel: 2.3MP
S/N Ratio: >38dB
Dynamic Range: >70dB
Image Format: BayerRG8/10/10Packed;BayerGB8/10/10Packed
Binning: Support
ROI: Support
X Flip: Support
Y Flip: Support
Gain: 1~32
Gamma: Range from 0 to 4, support LUT
Exposure Time: 16μS~1S
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 64MB
Port
Port: USB 3.0
GPIO Interface: 6 pin Hirose: 1 Opto-isolated input, 1 Opto-isolated output, 1 configurable input/output without opto isolation
Lens Mount: C
Power
Power Supply: Power supply via USB connector /DC power supply by Hirose connector, with voltage range from 9V to 24V
Power Consumption: ≈3.9W
Structure
Product Dimensions: 29mm × 29mm × 29mm (not including rear case connector)
Net Weight: 60g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
