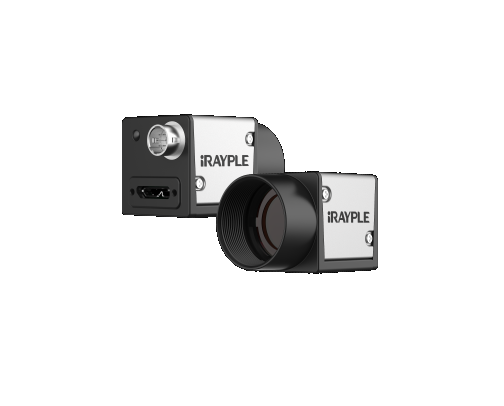

iRAYPLE A7201MU000E ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (XGS2000; 1920 × 1200; Mono)
Basic
Sensor: XGS2000
Image Sensor: CMOS
Shutter: Global
Resolution: 1920 × 1200
Frame Rate: 72 kHz
Bit Depth: 12
Mono/Color: Mono
Pixel Size: 3.2 μm × 3.2 μm
Pixel: 2.3 MP
S/N Ratio: ＞38 dB
WDR: 70 dB
Image Format: Mono8/10/10Packed
Binning: Support
ROI: Support
X Flip: Support
Y Flip: Support
Gain: 1-32
Gamma: Range from 0 to 4, support LUT
Exposure Time: 20 μs-1s
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 64 MB
Port
Port: USB 3.0
GPIO Interface: 6 pin Hirose: 1 Opto-isolated input, 1 Opto-isolated output, 1 configurable input/output without opto isolation
Lens Mount: C
Power
Power Supply: Power supply via USB connector /DC power supply by Hirose connector, with voltage range from 6V to 24V
Power Consumption: v
Structure
Product Dimensions: 29 mm×29 mm×29 mm(not including rear case connector)
Net Weight: 60 g
Environment
Storage Temperature: -30° C~ + 80° C
Operating Temperature: -30° C~+50° C
