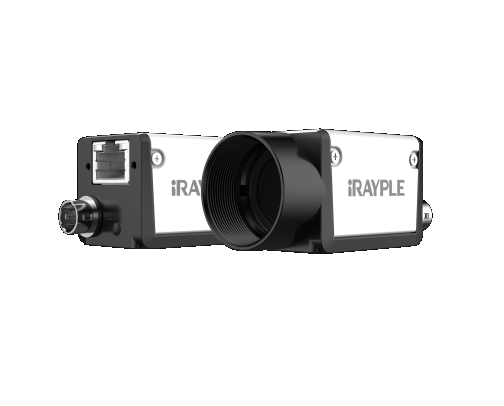

iRAYPLE A7201MG010E ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (XGS2000; 1920 × 1200; Mono)
Basic
Sensor: XGS2000
Image Sensor: 1/2.2"CMOS
Shutter: Global
Resolution: 1920 × 1200
Frame Rate: 52 fps
Bit Depth: 12
Mono/Color: Mono
Pixel Size: 3.2 μm × 3.2 μm
Pixel: 5.0 MP
S/N Ratio: 38 dB
WDR: 60 dB
Image Format: Mono8/10/10Packed/Mono12/Mono12Packed；
Binning: Support
ROI: Support
X Flip: Support
Y Flip: Support
Gain: 1～32
Gamma: From 0 to 4，support LUT
Exposure Time: 25 μs～10 s
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
FPN: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 256 MB
Port
Port: GigE,PoE
GPIO Interface: 1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output
Lens Mount: C-mount
Power
Power Supply: PoE/ DC 9V~24V power supply via Hirose interface
Power Consumption: 12 V≈3.2 W
Structure
Product Dimensions: 29mm*29mm*42mm (not including lens mount and rear case connector)
Net Weight: 88 g
Environment
Storage Temperature: -30℃～+80℃
Operating Temperature: -30℃～+50℃
