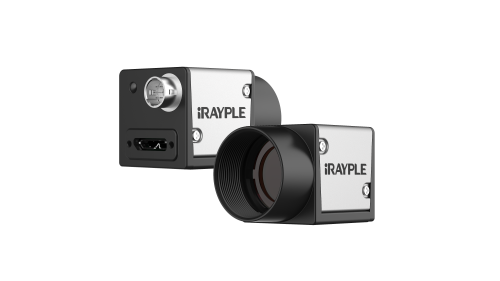

iRAYPLE A5031CU815E ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (PYTHON 300; 640 × 480; Color)
Basic
Sensor: PYTHON 300
Image Sensor: 1/4"CMOS
Shutter: Global
Resolution: 640 × 480
Frame Rate: 815 fps
Bit Depth: 10
Mono/Color: Color
Pixel Size: 4.8 μm × 4.8 μm
Pixel: 0.3MP
S/N Ratio: >38dB
WDR: >60dB
Image Format: BayerRG8/10/10Packed，BayerGB8/10/10Packed
Decimation: Support
ROI: Support
X Flip: Support
Y Flip: Support
Gain: 1~32
White Balance: Automatic white balance
Gamma: From 0 to 4，support LUT
Exposure Time: 40μS~1S
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
FPN: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 64MB image cache
Port
Port: USB3.0
GPIO Interface: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Lens Mount: C-mount
Power
Power Supply: PoE/ DC 9V~24V power supply via Hirose interface
Power Consumption: ≈3.4W
Structure
Product Dimensions: 29mm*29mm*29mm
Net Weight: 60 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
