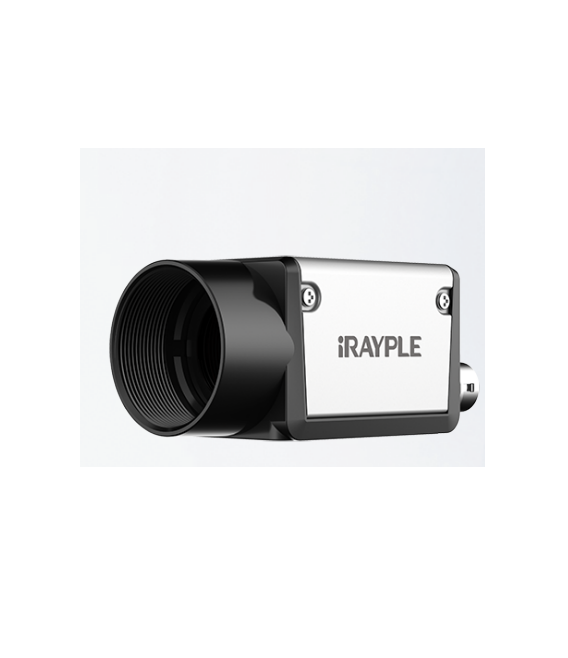

iRAYPLE A3A04MG10E ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (MT9J003, 3840 × 2748, mono)
Basic
Sensor: MT9J003
Image Sensor: 1/2.3"CMOS
Shutter: Rolling
Resolution: 3840 × 2748
Frame Rate: 10 fps
Bit Depth: 12
Mono/Color: Mono
Pixel Size: 1.67 μm × 1.67 μm
Pixel: 10.6MP
S/N Ratio: >32dB
Dynamic Range: 65dB
Image Format: Mono8/10/10Packed/12/12Packed
Binning: Support
ROI: Support
Gain: 1~32
Gamma: From 0 to 4，support LUT
Exposure: Time 25μS~1S
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
FPN: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 256MB
Port
Port: GigE, PoE
GPIO Interface: 1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable
input and output
Lens Mount: C-mount
Power
Power Supply: PoE/ DC 9V~24V power supply via Hirose interface
Power Consumption: 12V≈2.9W
Structure
Product Dimensions: 29mm*29mm*42mm
Net Weight: 88 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
