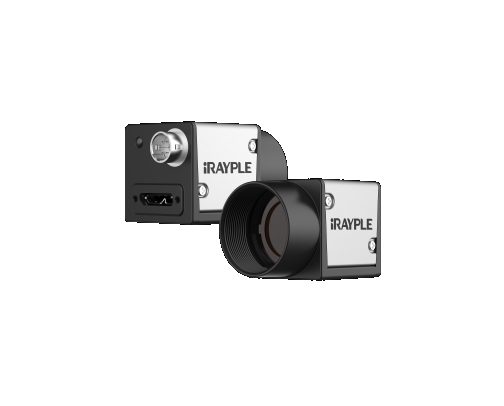

iRAYPLE A3200CU000E ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (IMX290; 1920 × 1080; Color)
Basic
Sensor: IMX290
Image Sensor: 1/2.8"CMOS
Shutter: Rolling
Resolution: 1920 × 1080
Frame Rate: 120 fps
Bit Depth: 10
Mono/Color: Color
Pixel Size: 2.9 μm × 2.9 μm
Pixel: 2.07MP
S/N Ratio: >38dB
WDR: 66dB
Image Format: BayerRG8/10/10Packed，BayerGB8/10/10Packed
ROI: Support
Gain: 1~32
White Balance: Automatic white balance
Gamma: Range from 0 to 4, support LUT
Exposure Time: 8μS~1S
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 64MB
Port
Port: USB3.0
GPIO Interface: 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Lens Mount: C
Power
Power Supply: Power supply via USB connector /DC power supply by Hirose connector, with voltage range from 9V to 24V
Power Consumption: ≈2.8W
Structure
Product Dimensions: 29mm*29mm*29mm
Net Weight: 68 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
