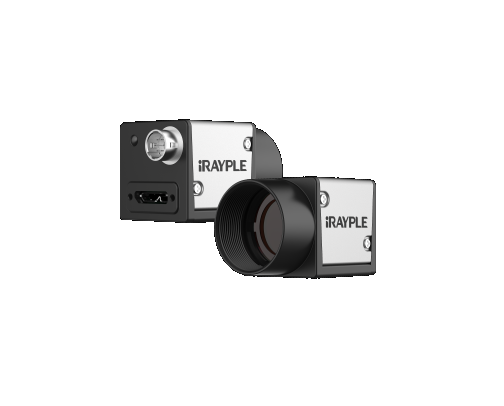

iRAYPLE A3138MU000E ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (SS; 1280 × 1024; Mono)
Basic
Sensor: SS
Image Sensor: 1/2.7"CMOS
Shutter: Global
Resolution: 1280 × 1024
Frame Rate: 201 fps
Bit Depth: 10
Mono/Color: Mono8
Pixel Size: 4.0 μm × 4.0 μm
Pixel: 1.3MP
S/N Ratio: 40dB
WDR: 60dB
Image Format: Mono8/10/10Packed
Binning: Support
ROI: Support
Gain: 1~32
Gamma: From 0 to 4，support LUT
Exposure Time: 10μS~1S
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 64MB
Port
Port: USB3.0
GPIO Interface: 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Lens Mount: C
Power
Power Supply: Power supply via USB connector /DC power supply by Hirose connector, with voltage range from 9V to 24V
Power Consumption: ≈2.8W
Structure
Product Dimensions: 29mm*29mm*29mm
Net Weight: 68 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
