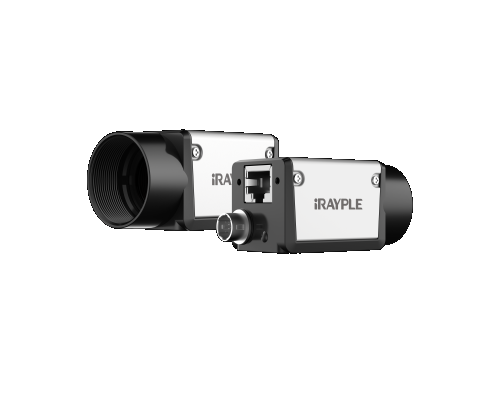

iRAYPLE A3135CG000E ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (RJ33J3CA0DT; 1280 × 960; Color)
Basic
Sensor: RJ33J3CA0DT
Image Sensor: 1/3"CCD
Shutter: Global
Resolution: 1280 × 960
Frame Rate: 30 fps
Bit Depth: 14
Mono/Color: Color
Pixel Size: 3.75 μm × 3.75 μm
Pixel: 1.2 MP
S/N Ratio: ＞38 dB
WDR: 63 dB
Image Format: Mono8，BayerRG8/10/10Packed/12/Packed，BayerGB8/10/10Packed/12/Packed，YUV422Packed；
ROI: Support
Gain: 1~32
Gamma: From 0 to 4，support LUT
Exposure Time: 1 μs～1 s
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
FPN: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 256MB
Port
Port: GigE, PoE
GPIO Interface: 1× 6 pin Hirose: 1× Opto-isolated input, 1× Opto-isolated output
Lens Mount: C
Power
Power Supply: PoE/ DC 9V~24V power supply via Hirose interface
Power Consumption: 12 V≈3.4 W
Structure
Product Dimensions: 29mm×29mm×2mm
Net Weight: 88 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
