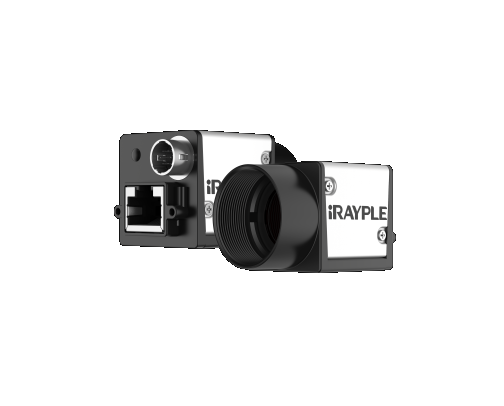

iRAYPLE A3124CG100E ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (AR0135; 1280 × 960; Color)
Basic
Sensor: AR0135
Image Sensor: 1/3"CMOS
Shutter: Global
Resolution: 1280 × 960
Frame Rate: 54 fps
Bit Depth: 12
Mono/Color: Color
Pixel Size: 3.75 μm × 3.75 μm
Pixel: 1.2MP
S/N Ratio: 40.7dB
WDR: 71.1dB
Image Format: Mono8，BayerRG8/10/10Packed/12/12Packed，BayerGB8/10/10Packed/12/12Packed，RGB8Packed,YUV422Packed
ROI: Support
Gain: 1~32
White Balance: Support
Gamma: From 0 to 4，support LUT
Exposure Time: 18.7μS~1S
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 128MB
Port
Port: GigE
GPIO Interface: 1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Lens Mount: C-mount
Power
Power Supply: DC 9V~24V power supply via Hirose interface
Power Consumption: 12V≈2.8W
Structure
Product Dimensions: 29mm*29mm*29mm
Net Weight: 60 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
