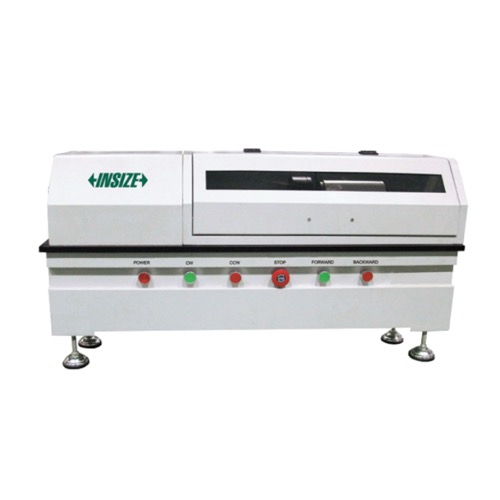

INSIZE UTM-TT5 ເຄື່ອງທົດສອບ Torsion ເອເລັກໂຕຣນິກ (5N.m)
Max. test torque: 5N.m
Type: A
Accuracy class: 1 class
Accuracy of test torque: ±1% of indicated value
Range of test torque: 2% ~ 100% FS
Min. resolution of test torque: 0.0001N.m
Accuracy of torsion angle: ±1% of indicated value
Range of torsion angle: 0 ~ 9999°
Resolution of torsion angle: 0.01°
Rated speed of torsion angle: 2160°/min
Accuracy of torsion angle speed: ±1% of the set value
Accuracy of constant load torque: ±1% of the set value
Direction of torsion test: clockwise and counter-clockwise operation
Height of spindle center*: 108mm
Max. distance between collets*: 300mm
Dimension (W x D x H)*: 1100 × 330 × 450mm
Weight*: 130kg
Power supply: AC 220V, 50Hz
*Can be customized to adjust according to test requirements
