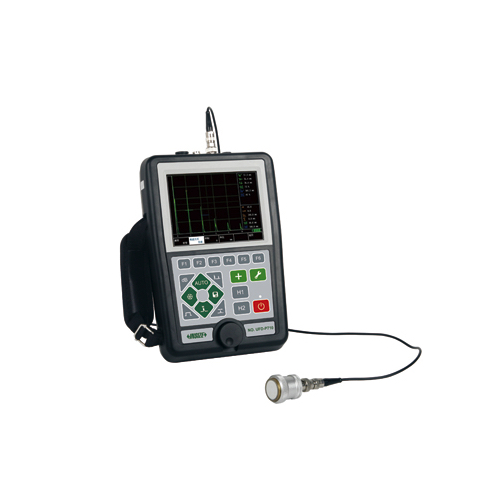

INSIZE UFD-P710 ເຄື່ອງກວດຈັບຂໍ້ບົກພ່ອງ Ultrasonic ດິຈິຕອນ (0~10000mm, 0.5~20MHz)

Measuring Range: 0~10000mm

Working Frequency: 0.5~20MHz

Material Velocity: 1000~15000m/s, adjustable in continuity; 30 pre-set nominated velocities for common materials

Repetition Frequency: 25~1600Hz

Dynamic Range: ≥32dB

Gain Range: 0.0~110dB (steps: 0.1dB, 1.0dB, 2.0dB, 6.0dB)

Vertical Linearity: ≤3.0%

Horizontal Linearity: ≤0.4%

Resolving Power: >26dB (2.5P20)

Sensitivity Leavings: >62dB (200∅2 flat bottom hole, narrow band)

Attenuator: 12dB±1dB

Suppression: 0~99%

Noise: ≤10%

Display Screen: 5.7" TFT color LCD, resolution 640X480

Pulse Type: sharp wave, negative square wave, bipolar square wave; transmit voltage 50~250V adjustable, step 50V

Pulse Shift: -7.5~3000us

Probe Zeroing: 0~200us

Rectification: positive, negative, full-play, RF

Gates and Alarms: two-way gate, optional: into the wave alarm, lost wave alarm, DAV curve alarm, alarm signal for sound and light alarms, measurement mode: peak, frontal

Interface: Q9 (BNC), USB HOST, Mini HDMI

Damping: 400 Ω, 800Ω

Power: rechargeable lithium-ion battery, working time 68h

Storage Temperature: -30~50°C

Relative Humidity: 20~95%RH

Size: 246×166×50mm

Weight: 1.3kg

STANDARD DELIVERY:

Main unit: 1 pc

Single-element straight probe UFD-P70: 1 pc

Single-element angle probe UFD-P71: 1 pc

Probe connecting cable: 2 pcs

Mainframe backpack: 1 pc

USB disk: 1 pc

Power adapter: 1 pc

Functions:

Flaw Detection Standard: built-in common flaw detection standards, direct call, convenient and fast

Auto Calibration: automatic calibration of probe zero offset, probe angle (K value), and material velocity

Peak Hold: compare frozen peak waveforms to live A-Scans to easily interpret test results

Flaw Locating: live display of sound-path, projection (surface distance), depth, amplitude

Flaw Discrimination: automatic flaw sizing using AVG or DAC, speeds reporting of defect acceptance or rejection; the equivalent dB value of defects or equivalent size of defects displayed in real time

Flaw Sizing: used for flaw detection of curved workpieces; displays the circumferential position of defects in real time

Curved Surface Correction: the curve is automatically generated, and sampling points are compensated and corrected; the curve automatically floats with the gain, expands with the detection distance, and moves with the delay time; displays the AVG curve of any aperture

DAC/AVG: AWS D1.1/1.5; choosing this standard reduces manual calculations and improves detection efficiency

Automatic Rating: select different AWS standards, automatically calculate the rating of defects, and display

Crack Height: crack height is measured and calculated automatically by the diffracted wave at the end

Gate Magnify: spreading of the gate range over the entire screen width

Continuous Record: video recording and playback

Echo Coding: display 1-9 echo display areas in different colors, used to analyze defect position

Scan Freeze: display freeze holds waveform and test distance data

Peak Mark: capture and mark the peak in real time

B Scan: intuitively displays the defect shape of the workpiece, making the detection result more intuitive
