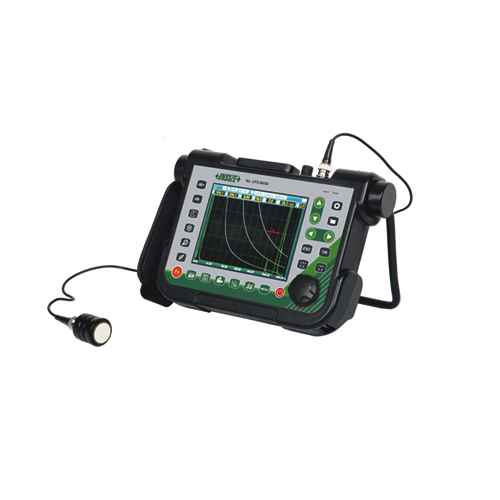

INSIZE UFD-B450 ເຄື່ອງກວດຈັບຂໍ້ບົກພ່ອງ Ultrasonic Digital (ປະເພດພື້ນຖານ) (0~15000mm)
Measuring range: 0~15000mm
Working frequency: 1~20MHz
Material velocity: 100~20000m/s
Repetition frequency: 20~2000Hz
Dynamic range: ≥26dB
Vertical linearity: ≤5.0%
Horizontal linearity: ≤0.5%
Resolving power: >32dB
Sensitivity leavings: >54dB
Suppression: 0~80%
Noise: ≤10%
Probe selection: single crystal probe, dual crystal probe, penetrating probe, climbing probe
Pulse energy: 100V, 200V, 250V, 300V, 350V, 400V, 450V, 500V (selectable)
Probe damping: 500, 1500, 2500, 5000 (selectable)
Rectification: Positive half wave, negative half wave, full wave, RF
Gates: Two independent gates controllable over entire sweep range
Trigger: Peak trigger, edge trigger
Alarms: Threshold positive/negative with LED flash
Interface: USB 2.0
Operating temperature: -10~50°C
Relative humidity: 20~95%RH
Power: build-in rechargeable battery
Size: 230×157×52mm
Weight: 1.13kg
