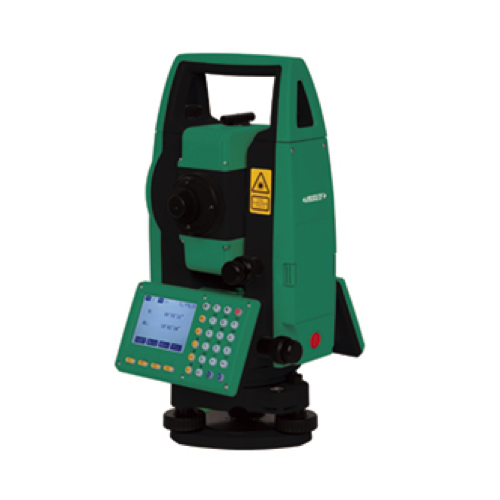

INSIZE TSA-B33 ສະຖານີທັງໝົດ (5000m, 1500m)
Distance Measurement (With cooperation target)
Measuring range:
Prism: 5000m
Reflective patch (60mm×60mm): 1000m
Accuracy: ±(2+2×10⁻⁶D)mm, D is the measuring distance (in mm)
Measuring time:
Continuous measurement: 0.25S
Tracking measurement: 0.1S
Single measurement: <1.0S
Prism-free Distance Measurement (Without cooperation target)
Measuring range: 1500m (Kodak Grey, 90% reflectivity)*
Accuracy:
0-300m: ±(3+2×10⁻⁶D)mm
300-600m: ±(5+2×10⁻⁶D)mm
600m: ±(10+2×10⁻⁶D)mm, D is the measuring distance (in mm)
Measuring time:
Continuous measurement: 0.25S
Tracking measurement: 0.1S
Single measurement: <1.0S
Angle Accuracy: ±2"
Minimum Angular Reading: 0.1"/1" (selectable)
Telescope Barrel Length: 152mm
Telescope Magnification: 30X
Field of View: 1°30"
Frame Rate: 3"
Minimum Focus Distance: 1.5m
Compensator: Range: ±6', Accuracy: ±1"
Tube Level Bubble: 30"/2mm
Round Level Bubble: 8/2mm
Display
Screen type: 240x160 dot matrix high definition, high brightness display
Screen size: 3.1 inch
Digital display: Maximum: 99999999.9999m Minimum: 0.1mm
Data Transmission: USB flash drive, Bluetooth
Power supply: 7.4V replaceable battery for 8 hours of continuous operation
Dimension (L×W×H): 206mm×180mm×353mm
Weight: 5.4kg
*Good weather: overcast sky, light wind, no fog, visibility about 40km
Standard Delivery
Main unit: 1 pc
Tripod: 1 pc
Power adapter and charging cable: 1 set
Li-ion battery: 2 pcs
USB flash drive: 1 pc
Measuring tape: 1 pc
