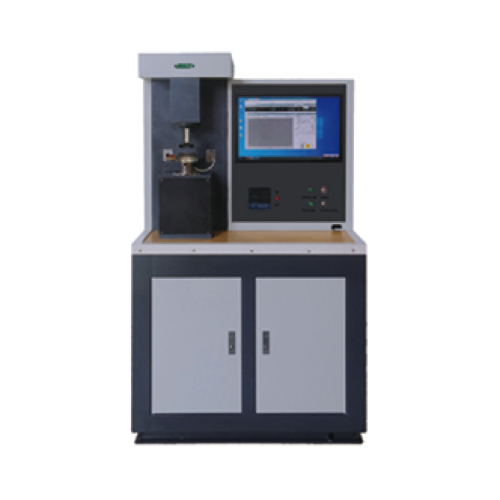

INSIZE STM-C1 Friction And Wear ເຄື່ອງທົດສອບ (1000N)
Maximum axial test force: 1000N
Accuracy of axial force: ±1%
Load rate of axial test force: 400N/min
Retention capacity of axial test force: ±1%
Range of friction sensor: 200N
Length of friction arm: 50mm
Maximum friction torque: 2.5N·m
Accuracy of friction torque: ±2%
Range of spindle speed: 5~2000r/min
Accuracy of spindle speed: ±1%
Taper of tester spindle: 1:7
Maximum distance between spindle and lower sub-disc: >75mm
Timekeeping device: 10s~9999min
Range of RPM counter: (1~99)×10^5 times
Dimension of main body: 860×740×1560mm
Weight: 550kg
Power supply: AC 220V, 50Hz
STANDARD DELIVERY:
Main unit: 1 pc
Pin and disc friction vice: 1 set
Computer: 1 pc
Printer: 1 pc
