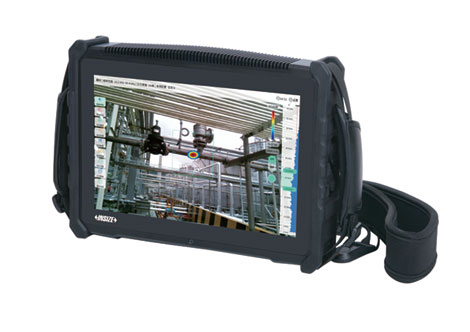

INSIZE SCX-DMM72 ຮູບ​ພາບ​ອາ​ຄູ​ສ​ຕິກ​ອຸດ​ສາ​ຫະ​ກໍາ​ (2kHz~65kHz; 62°x45°)

Specification:

Microphone array:

microphone: 72 channels MEMS microphone

frequency band: 2kHz~65kHz

sound image field of view: 62°x45°

sound image frame rate: 25FPS

test sound pressure level range: 30dB-120dB

detect distance: 0.5m-100m

position accuracy: ±1cm

Camera:

camera focal length: 3.04mm

focusing mode: automatic

Display screen:

resolution: 1024x600

size: 10"

touch screen: capacitive

backlight: adjuctable

Storage:

data interface: TF memory card/USB 3.0/TYPE-C

data storage format: .jpg (picture), .mp4 (video)

Power system:

battery type: rechargeable lithium-ion battery, working time about 4h

charging mode: TYPE-C charging; portable charger, capable of charging while using

Environment parameter:

switch-on temperature: -10°C~40°C

operating temperature: -25°C~50°C

storage temperature: -20°C~40°C

relative humidity: 10%RH~95% RH (non-condensing)

Physical parameter:

lamp: 1w

shell material: aluminium alloy, drop-proof design

protection: IP56

dimension: 272mmx200mmx50mm

weight: 2.1kg (including handle and shoulder strap)

Standard Delivery

Main unit: 1pc

128G TF card: 1pc

Reader: 1pc

Power adapter: 1pc

■ Suitable for gas leakage detection under the pressure or vacuum conditions, equipment noise localization, partial discharge localization and other scenarios

■ Partial discharge pattern display function: real-time display of pulse emission pattern

■ Leakage assessment function: adjustable measuring distance, more accurate assessment of the leakage rate

■ Intelligent noise reduction function: automatically filter sound signals outside the focus frame

■ Adjustable decibel threshold function: used to filter background noise.

■ Support photo and video recording of fault location

■ Language: Chinese, English
