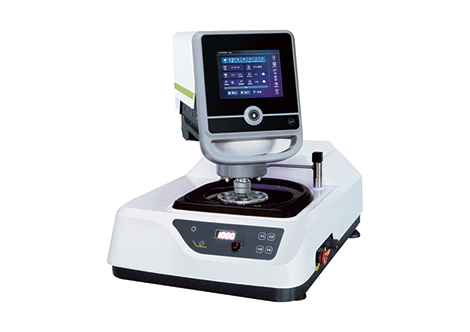

INSIZE MLP-GP505 Grinder ແລະ polisher (ປະເພດຂັ້ນສູງ) (Ø250mm)

Specification:

Wheel diameter: Ø250mm (customisable)

Wheel rotation speed: 0~1000r/min (adjustment step 20rpm), 150r/min, 300r/min, 600r/min, 1000r/min (four fixed speeds)

Wheel rotation direction: clockwise or counterclockwise

Grinding head speed: 50~150r/min (stepless adjustable)

Pressure range: 5~60N (single point loading), 20~200N (centre loading)

Operation number: 6

Operation time: 0~12h

Sample diameter: Ø30mm (customisable)

Air pressure: >0.35MPa

Programmable quantity: 256 sets of grinding programs can be stored

Power supply: AC 220V, 50HZ, 2.1KW

Dimension (WxHxD): 596×714×707mm

Weight: 102kg

Standard Delivery:

Main Unit: 1 pc

Silicon carbide paper: 20 pcs each, (240, 400, 800, 1200), 80 pcs in total

Poloshing cloth: 3 pcs each (velvet silk, woolen fabric), 6pcs in total

Polishing agent: 1 pc (W2.5,500ml)

Spray polish agent: 1 pc (W2.5,500ml)

Anti-stick disc: 1 pcs (Ø250mm)

Magentic pad: 5 pcs (Ø250mm)

■ABS shell and stainless steel parts, anti-corrosion, easy to clean

■Can hold up to 6 samples (4 holes are optional)

■Smooth rotation, low noise

■Adjustable speed

■Intuitive pressure and time setting, 256 sets of grinding and polishing programs can be stored

■Water cooling device and abrasive cleaning nozzle prevent samples from overheating and destroying structure

■Replaceable platen, platen rotation direction can be selected

■Centre loading and single point loading, automatic abrasive distribution
