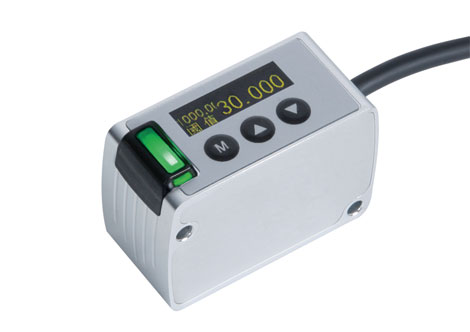

Code NPN: LDS-N100
Detection method: diffuse reflection
Basic (center) distance: 100mm
Detection range (F.S.): 65-135mm
Full scale: 70mm
Repeat accuracy: 70μm
Linear accuracy: ±0.2% F.S.
Temperature drift characteristics: ±0.03% F.S./°C
Light source: medium: red diode laser, wavelength 655nm; output power <1mW; laser class:IEC Class 2
Light spot diameter: Ø120μm
Output:
Switch mode: NPN open collector, ≤50mA/DC 24V, residual voltage<1.5V
Analog: analogue voltage: 0~5V (alarm: 5.2V), analogue current: 4-20mA (alarm: 0mA), Chinese display switchable
Operation: Light.on/Dark.on selectable
Response time: 1.5ms/5ms/10ms, switchable
Power supply: DC12-24V
No-load current: <30mA (at supply voltage 24V DC), <60mA (at supply voltage 12V DC)
Indicator light: output indicator: yellow, power indicator: green
Protection circuit: reverse polarity protection/surge protection/short circuit protection
Protection level: IP67
Withstand voltage: AC1000V, 50/60Hz, 1min
Vibration resistance: 10-55Hz (period 1min), double amplitude 1.5mm, 2H in each X/Y/Z direction
Impact resistance: 500m/S^2 (approx. 50G), 3 times each in X/Y/Z direction
Insulation impedance: 50megaohm or more (DC500V megohmmeter)
Material:
Cover: aluminum alloy
Lens: PMMA
Guidewire: PVC (polyvinyl chloride)
Connection:switching: lead-in type (4-pole, standard cable length 2m), analog: lead-in type (5-pole, standard cable length 2m)
Ambient illumination: incandescent lamp ≤ 3000lux, sunlight ≤ 20000lux
Ambiance temperature: operation: -10~45°C, storage: -20~60°C(non-freezing)
Ambience humidity: operation: 35~85%RH, storage: 35~85%RH (non-condensing)
Weight: 85g (including cable)
STANDARD DELIVERY
Main unit: 1pc
Mounting bracket: 1pc
Cable: 1pc
■ High accuracy, non-contact measurement, high speed response,
multiple measurement modes, environmental adaptability, programmable control, rich data output interface and easy maintenance.
■ Can be used in automated production lines, robotic arms, packaging equipment, printing equipment, medical equipment etc.
