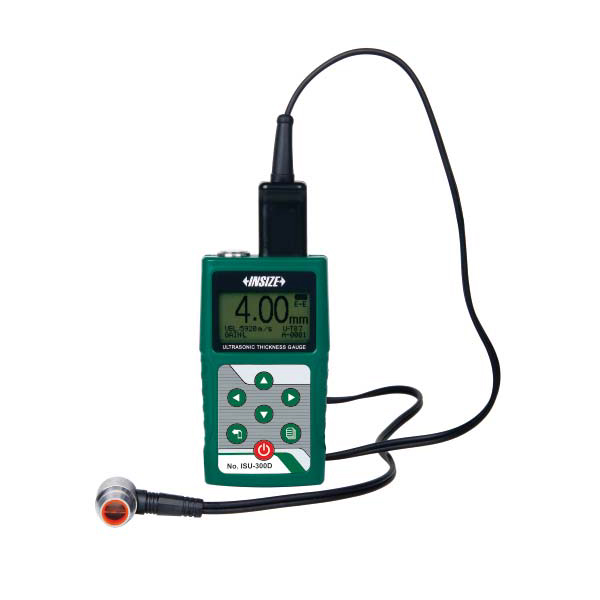

INSIZE ISU-300D Gage ຄວາມຫນາ Ultrasonic (Through Coating)
Specifications:
Measuring range: E-E mode: coating thickness 0~1mm, substrate thickness 4~25mm
T-E mode: substrate thickness 1,5~200mm
Resolution: 0.01mm (range<100mm)
0.1mm (range≥100mm)
Repeatability: 0.03mm (range<100mm)
0.1mm (range≥100mm)
Accuracy: ±0.04mm (range<10 mm)
±(0.04+H/1000)mm (range 10~100mm)
±H/333mm (range≥100mm)
H is a thickness to be measured in mm
Velocity: 1000 ~ 9999m/giây
Power supply: Pin AAA 2x1,5V
Dimension: 116x64x27mm
Weight: 220g
Features:
Two measuring modes, Echo-Echo (E-E) and Transmit-Echo (T-E):
-E-E is applicable for non-metallic coating (such as pain, plastic resin, etc.) on metal substrates, can penetrate coating and measure the thickness of substrates
-T-E is to measure the thickness of material without coating, such as metal, plastic, glass, nylon, resin, ceramics, ice, etc.
Tolerance measurement
Average calculation of maximum 9 readings
Data can be input to Excel and Word as keyboard signal
Standard delivery:
Main unit: 1 pc
Transducer ISU-T07: 1 pc
Battery (AAA): 2 pcs
Couplant (for ISU-T04, ISU-T06, ISU-T07, ISU-T12): 1 bottle
USB cable: 1 pc
