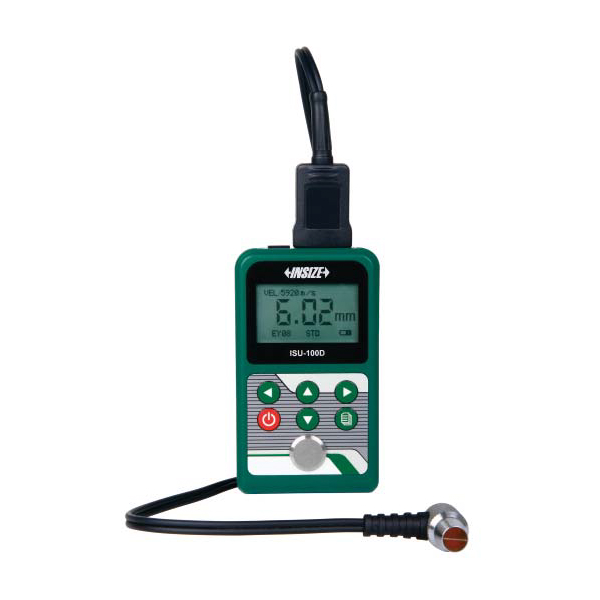

INSIZE ISU-100D Gage ຄວາມຫນາ Ultrasonic (0.8~300mm)
Specifications:
Measuring range: 0.8~300mm
Resolution: 0.01mm (range<100mm)
0.1mm (range≥100mm)
Accuracy: ±0.04mm (range<10 mm)
±(0.04+H/1000)mm (range 10~100mm)
±H/333mm (range≥100mm)
H is a thickness to be measured in mm
Transducer:
- Frequency: 50MHz
- Diameter (Ød): 10.8mm
Minimum size of pipe for measurement: 20x1.2mm(diameter x wall thickness)
Applicable temperature: <60°C
Velocity: 1000-9999m/s
Power supply: 2xAAA batteries
Dimension: 114x64x28mm
Weight: 200g
Measure the thickness from one side of object, suitable for pipe, tank, etc.
Applicable material: metal, plastic, glass, nylon, resin, ceramic, ice
Standard delivery:
Main unit: 1 pc
Transducer: 1 pc
Couplant: 1 bottle
Battery (AAA): 2 pcs
