Standard Delivery:

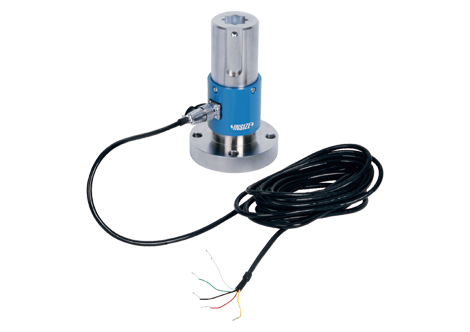

Torque sensor (with connecting cable): 1pc
Specification
Maximum range A: 20 N.m
A (mm): 98
B (mm): 50
C (mm): 80
W (mm: 58
D (mm): 155
E (mm): 20
F (mm): 65
K (mm): 53
L (mm): 25
N (mm): 16
S (mm): 20
P (mm): 44
M (mm): 4xØ10.5 (4xØ6 optional)
G (mm): /
H (mm): /
Output sensitivity: 1.0~2.0mV/V
Zero output: ±1%F.S.
Linearity: ±0.1%F.S.
Hysteresis: ±0.5%F.S.
Repeatability: ±0.3%F.S.
Creep (30 minutes): ±0.1%F.S.
Temperature sensitivity drift: ±0.1%F.S./10°C
Zero temperature drift: ±0.1%F.S./10°C
Response frequency: 10kHz
Material: Alloy steel /Stainless steel
Electrical impedance: 350±5/700±50
Insulation impedance: ≥5000MΩ/100VDC
Operating voltage: 5~15V
Working temperature: -20~80°C
Safety overload: 120%
Extreme overload: 150%
Cable specification: Ø5mm×3m
Extreme cable pulling force: 10kg
