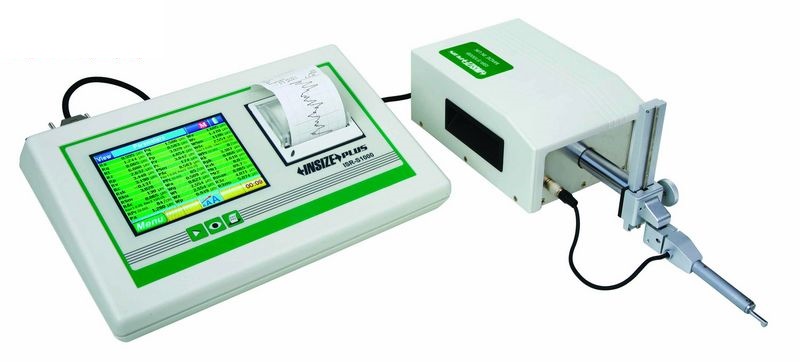

48 roughness parameters according to ISO-4287, JIS-B0601, ISO-12085, JIS-B0631
Automatic probe leveling
Measuring range up to 1000um, can measure grit and shot blasting.
Traverse length up to 50mm
The probe can rotate from -90 °to 90 °
Color touch screen, display, roughness values, profile and curves
Can print roughness values, profile and curves
Memory of maximum 1000 results
Can set tolerance
Parameters: Ra, Rq, Rt, Rq, Rv, Rc, Rsk, Rku, RSm, Roc, RPc, Pa, Pq, Pp, Pc, Pv, Psm, Poc
PPc, Wa, Wq, Wt, Wz, Wq, Wv, Wc, Wsm, Woc, WPc, Rk, Rpk, Rvk, Mr1, Mr2, Rmax,
R3z, R3zm, R, AR, Rx, Aw, Rke, Rvke, Mr1e, Mr2e
Range: 1000um
Accuracy: +-3%
Resolution (Ra): 0.001um
Probe type: inductive
Probe Stylus radius/ angle: 5um/90 °
Probe stylus material: diamond
Measuring force: 0.75mN
Measuring unit: um/uin
Cut off: 0.08/ 0.25/0.8/2.5/8mm
Numbers of cut-offs: 1-19 (cut off 0.08/0.25/0.8/2.5mm)
5 (cut off 8mm)
Traverse speed: 0.5mm/s or 1mm/s
Memory: 1000 measurement results
Output: USB
Power: built-in rechargeable results
Dimension: 320x210x80m
Weight: 2.2kg
